Lots of materials can be pressed like wood chips from hard- or softwood, saw dust, abrasive dust in combination with other materials, paper, straw, styrofoam.
The maximum moistness should not exceed 18%.
The RB 20 SV - RB 50 SV Prestige series not only has compact dimensions, but it is also a workhorse. Ideal applications are small and mid-sized companies that are concerned with optimizing the cost/benefit ratio. Prestige series models are supplied complete with hydraulic oil and a safety switch for oil temperature.

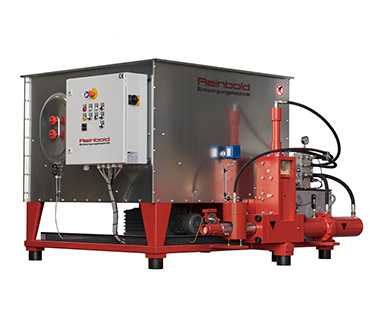

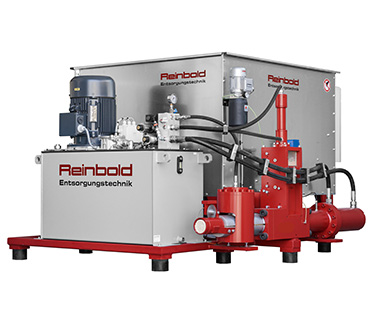

Both series have the same compaction unit, in order to produce high-strength briquettes. The difference is the extra large, high capacity container for the RB 100 plus - RB 200 plus series.
Numerous options are available:
- Oil cooling for continuous operation
- Transmission lines
- Briquette length monitoring
- Automatic on/off
- Switch for oil shortage
- Hopper attachments
With its modular construction, the RB Flexible series can be individually tailored to customer-specific space requirements. It can be adapted well to existing production plants and can be configured according to the throughput desired. Depending on throughput, tandem, Trio, or Quattro design combinations are possible.
RB 100 Flexibel - RB 300 Flexibel S series was designed especially for industrial applications.

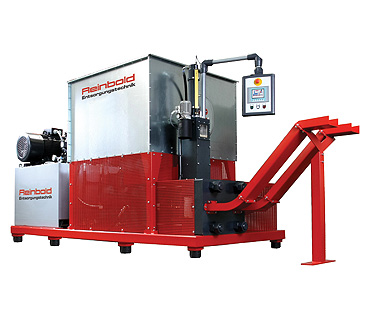

The Reinbold briquetting press RB 400 RS - RB 600 RS - reliable and efficient briquetting technology for the production of square briquettes for the reduction in volume or thermal recycling.
The excellent packing density of the square briquettes is ideal for storage or transportation. In addition, the high-compression briquettes have a very good combustion behavior.
All compressible materials, such as wood chips, wood dust are highly compressed in a matrix.
Thus, the briquette produced is dimensionally stable and solid. The briquettes are expelled each other. A 30 kW motor drives the hydraulic axial piston pump and is able to produce per minute up to 7 briquettes. The throughput depends on the specific weight of the material.
The briquetting press can be supplied with a container of 1,400 x 1,400 mm. In addition, there are many technical features available, such as a control for the briquetting press.
The briquetting press RB 400 RS – RB 600 RS reliable and efficient briquetting technology for the industrial production of square briquettes for volume reduction or energy recovery. The very high packing density of the square briquettes is perfect for the storage or transport. Moreover, the high-density briquettes have a very good burning behavior. Let us help you find the best way to briquette your material.

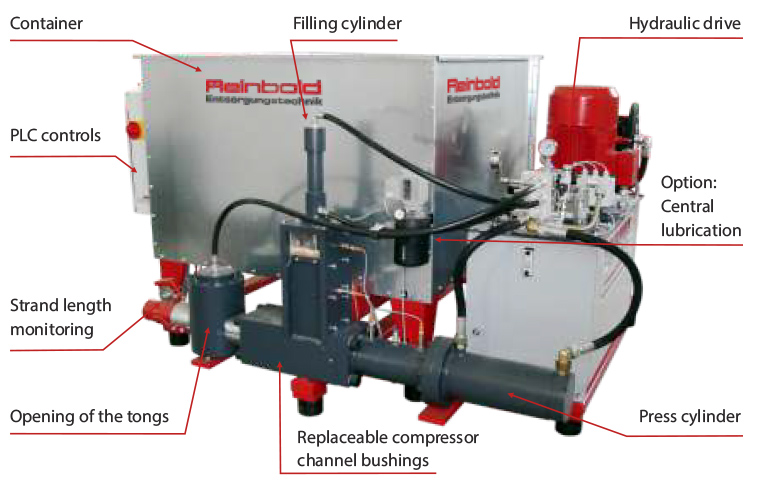

Powerful hydraulic cylinders,
gear motors for the agitator and screw conveyor
Control panel for control and programming of the briquetting press with touch screen
the RB 400 RS - RB 600 RS in action in the production of square briquettes
Briquettes are clean, economical fuel.Many materials can be compressed, such as: Hard or soft wood, planing materials, wood chips, sawdust and sanding dust when mixed with other materials, wooden materials, shavings and chipboard, multiplex, OSB, paper, cardboard, as well as other materials such as straw, hay, poystyrene, aluminium shavings, aluminium dust.
Option: The filling level sensor starts the press automatically as soon as the material reaches the filling level paddle.
Austauschbare gehärtete Presskanalbuchse.
Durch die automatische Stranglängenüberwachung ist eine störungsfreie und konstante Produktion gleich langer Briketts gewährleistet.
